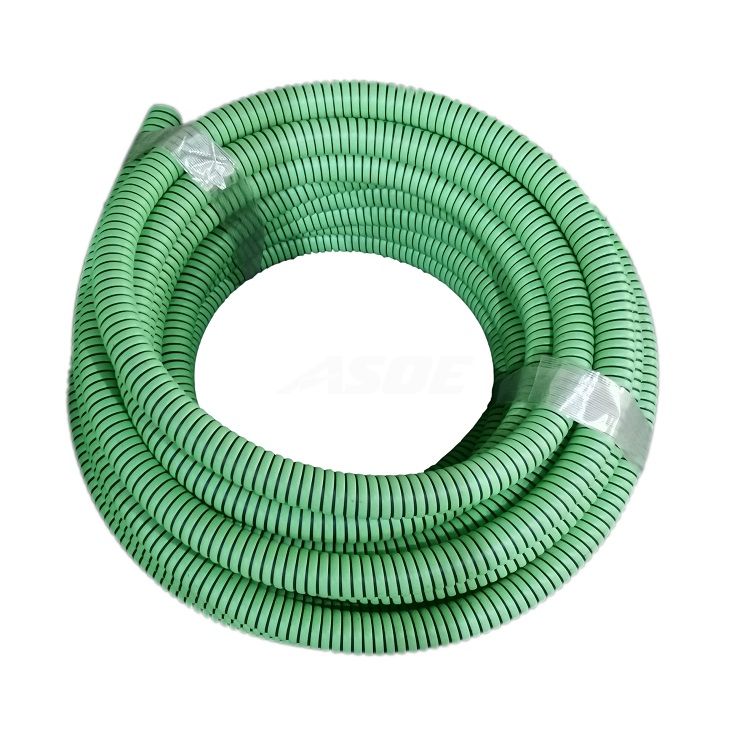

EPDM/PE Suction Hose is a high-performance hose engineered for efficient liquid transfer across agricultural, industrial, and municipal applications. Constructed from premium EPDM and PE materials, it offers outstanding resistance to chemicals, abrasion, and harsh weather conditions. Its lightweight and flexible design allows for easy handling and installation, making it ideal for a wide range of suction and discharge operations.
Size: 1″-6″
Standard Color: Black and Green (other colors available upon request)
Length: Up to 30 meters (custom lengths available)
Application:
· Vacuum Pumps Dewatering
· Fracturing (frack) liquid removal
· Marine Bilge Discharge
· Agriculture Liquid Fertilizers Transfer
· Liquid Manure Handling
· Irrigation Systems
Structure:
· Constructed from high-grade rubber compounds
· Reinforced with a rigid polyethylene helix for added strength and durability
Features:
· Excellent flexibility for ease of handling and installation
· Cold-resistant materials suitable for low-temperature applications
| Code | Size (Inch) |
ID | OD | Wall Thickness | Weight | Minimum Bend Radius | Working Pressure at 40℃ | Vacuum Rating at 40℃ |
| mm | mm | mm | kg/m | m | MPa | kPa | ||
| AS-1 | 1 | 25.4(+1.5, -0) | 36.5 (+1.5, -0) | 5.5～6.5 | 0.46 | 0.060 | 0.30 | 94.81 |
| AS-1.5 | 1-1/2 | 38.1 (+1.5, -0) | 50.5 (+1.5, -0) | 5.5～6.5 | 0.62 | 0.080 | 0.24 | 94.81 |
| AS-1.75 | 1-3/4 | 44.5 (+1.5, -0) | 54.0 (+1.5, -0) | 4.5～5.5 | 0.80 | 0.105 | 0.24 | 94.81 |
| AS-2 | 2 | 50.8 (+1.5, -0) | 62.0 (+1.5, -0) | 5.5～6.5 | 0.95 | 0.125 | 0.24 | 94.81 |
| AS-3 | 3 | 75.2 (+1.5, -0) | 86.5 (+1.5, -0) | 6.5～7.5 | 1.50 | 0.180 | 0.21 | 88.04 |
| AS-4 | 4 | 100.8 (+1.5, -0) | 116.5 (+1.5, -0) | 8.0～9.0 | 2.40 | 0.300 | 0.17 | 88.04 |
| AS-6 | 6 | 151.1 (+1.5, -0) | 168.0 (+1.5, -0) | 8.5～9.5 | 4.00 | 0.510 | 0.14 | 81.26 |
