Industrial Applications: Waterjet cutting, Tube cleaning, surface preparation and paint removal, Hydro demolition, Ships, tanks and vessel cleaning, Waterblast supply hose, General industrial cleaning, Removal of accumulated dirt from surfaces
Hydraulics Applications: Hydraulic jacks, Bolt tensioning, Testing UHP applications, General UHP

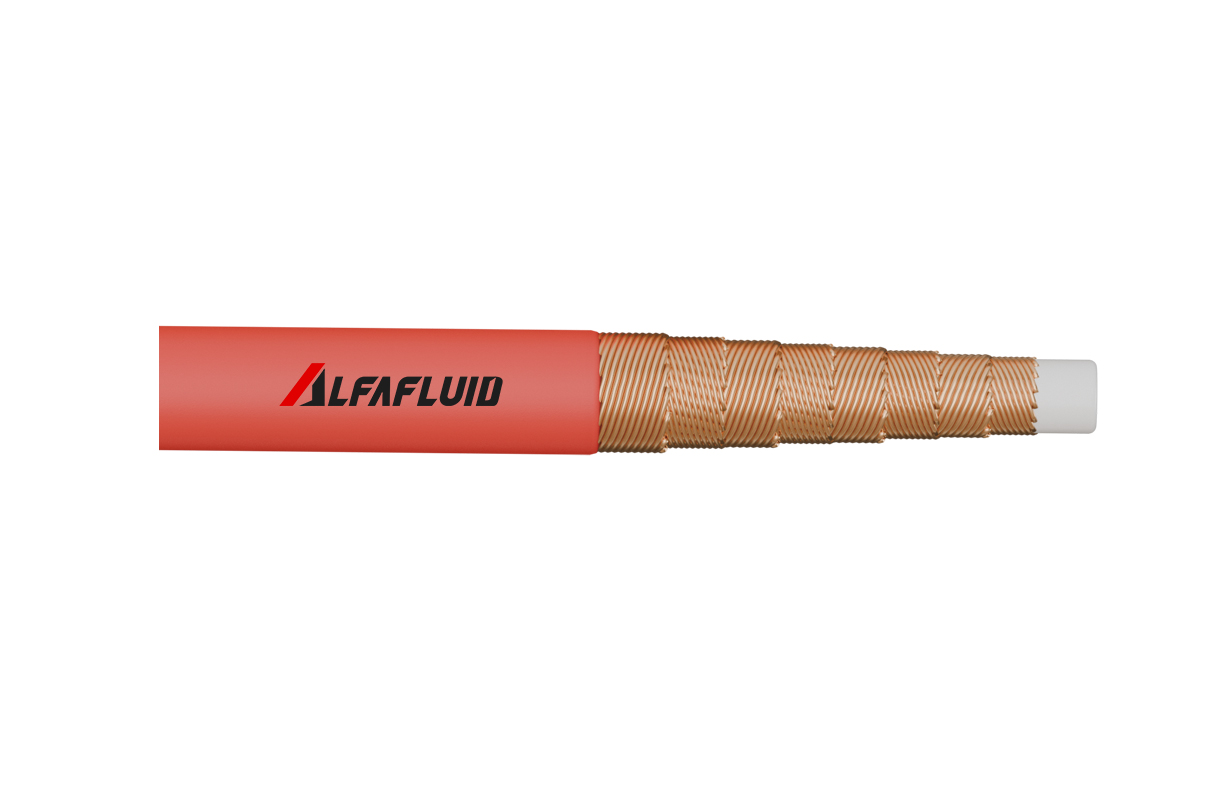

Construction:
Inner Core: Polyoxymethylene (POM)
Reinforcement: Multi layers of high-tensile steel wire
Outer Cover: Polyamide (PA)
Temperature:
-30°C to +60°C [-22°F to 140°F]
| Part No. | ITEM | ID | OD | W.P | B.P. | Bending radius | Weight | ||||||||
| Dash | Inch | DN | ID MM | ID INCH | OD MM | OD INCH | WP BAR | PSI | BAR | PSI | mm | in | KG/M | LBS/FT | |
| 4/8W | 2.5 | 5/32 | 4 | 4 | 0.16 | 12.8 | 0.5 | 3200 | 46400 | 8000 | 116000 | 175 | 6.89 | 0.54 | 0.362 |
| 5/8W | 3 | 3/16 | 5 | 4.7 | 0.19 | 16 | 0.63 | 3800 | 55000 | 8500 | 123000 | 230 | 9.05 | 0.78 | 0.526 |
| 8/8W | 5 | 5/16 | 8 | 7.6 | 0.3 | 22 | 0.87 | 3800 | 55000 | 9000 | 130000 | 300 | 11.81 | 1.51 | 1.015 |
| 12/8W | 8 | 1/2 | 12 | 12.8 | 0.5 | 28.7 | 1.13 | 3010 | 43600 | 6250 | 90500 | 350 | 13.78 | 2.35 | 1.57 |
