UHP

UHP

Industrial Applications: Waterjet cutting, Tube cleaning, surface preparation and paint removal, Hydro demolition, Ships, tanks and vessel cleaning, Waterblast supply hose, General industrial cleaning, Removal of accumulated dirt from surfaces

Hydraulics Applications: Hydraulic jacks, Bolt tensioning, Testing UHP applications, General UHP

Get a Quote

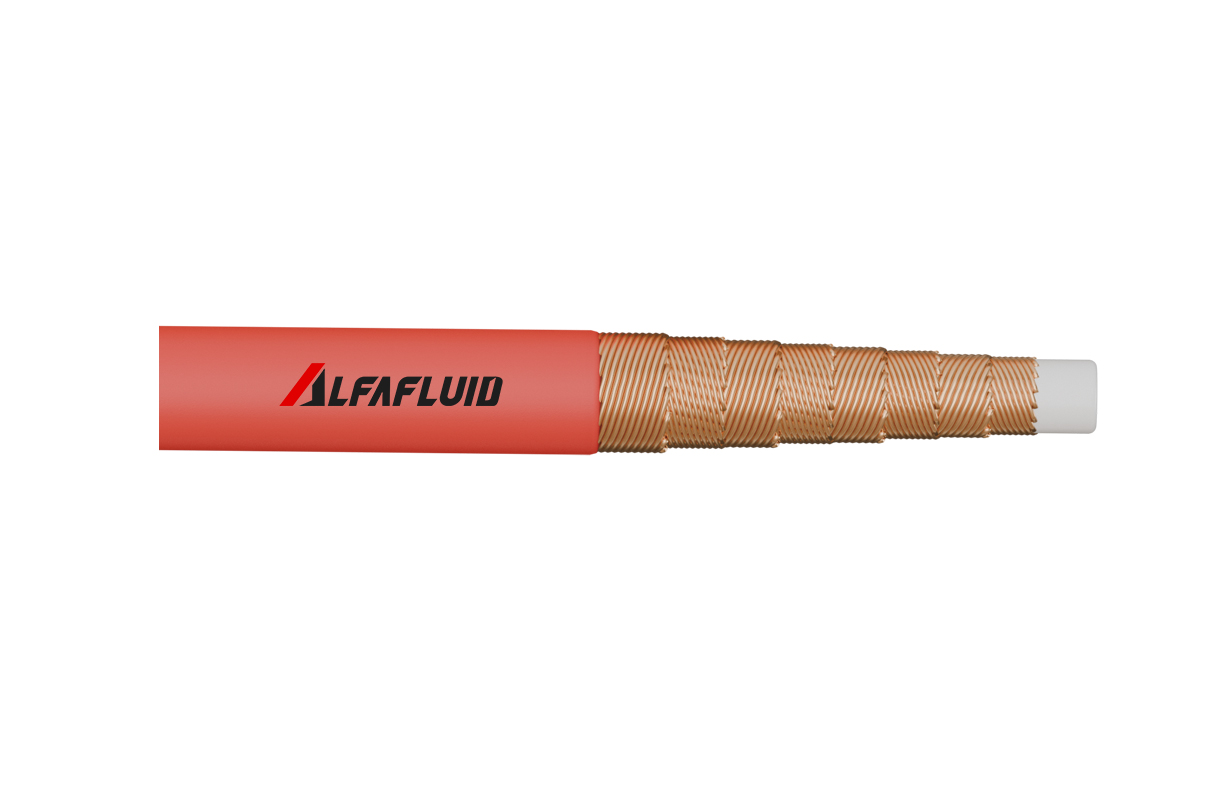

Construction:
Inner Core: Polyoxymethylene (POM)
Reinforcement: Multi layers of high-tensile steel wire
Outer Cover: Polyamide (PA)
Temperature:
-30°C to +70°C [-22°F to 158°F]



Part No. ITEM ID OD W.P B.P. Bending radius Weight
Dash Inch DN ID MM ID INCH OD MM OD INCH WP BAR PSI BAR PSI mm in KG/M LBS/FT
UHP4 2.5 5/32 4 4 0.16 9.90 0.39 3035 44008 7588 110019 90 3.54 0.23 0.157
UHP5 3.0 3/16 5 4.5 0.18 15.30 0.60 3200 46400 8000 116000 250 9.84 0.69 0.464
UHPX5 3.0 3/16 5 4.5 0.18 15.30 0.60 4000 58000 10000 145000 250 9.84 0.69 0.464
UHP6 4.0 3/16 6 5.8 0.23 18.60 0.73 3200 46400 8000 116000 280 11.02 1.06 0.710
UHP8 5.0 5/16 8 7.6 0.30 19.30 0.76 2800 40600 7000 101500 300 11.81 1.06 0.707
UHPX8 5.0 5/16 8 7.6 0.30 19.30 0.76 3035 44008 7588 110019 300 11.81 1.06 0.707
UHPX8-DC 5.0 5/16 8 7.6 0.30 23.30 0.76 3035 44008 7588 110019 300 11.81 1.24 0.833
UHPX8-HW 5.0 5/16 8 7.6 0.30 22.00 0.87 3200 46400 8000 116000 300 11.81 1.50 1.005
UHPX10 6.0 3/8 10 9.8 0.39 24.00 0.94 3035 44008 7588 110019 320 12.6 1.73 1.163
UHP13 8.0 1/2 12 12.8 0.50 27.70 1.09 2800 40600 7000 101500 350 13.78 2.09 1.397
UHP13-DC 8.0 1/2 12 12.8 0.50 32.10 1.26 2800 40600 7000 101500 350 13.78 2.28 1.532
UHP16 10.0 5/8 16 15.9 0.63 31.80 1.25 2000 29000 5000 72500 400 15.75 2.52 1.690
